Cockpit Management

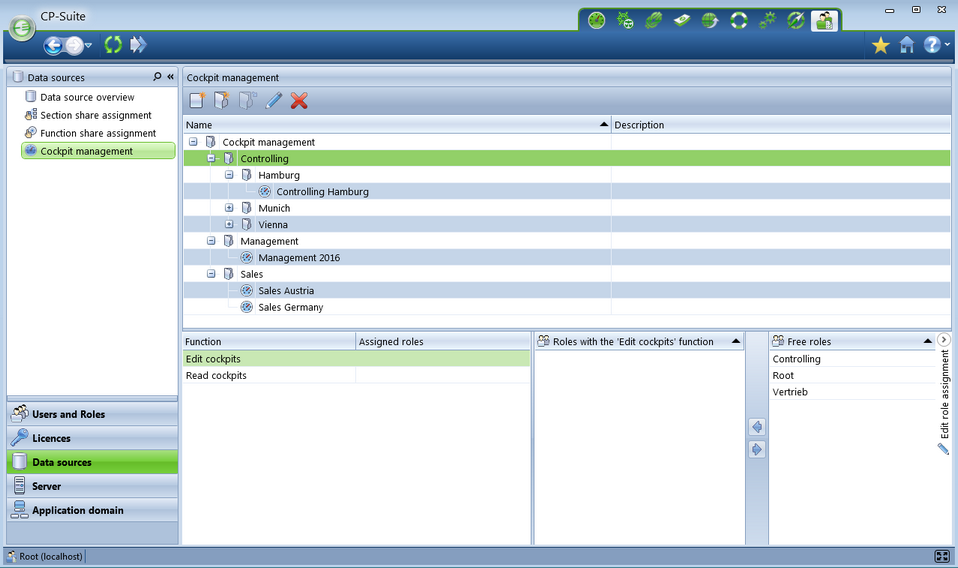

In the Cockpit Management view, you can define the access rights to your cockpits. Create a folder structure and assign the desired access rights to your cockpits either directly or via the folder structure.



image_Cockpit_Verwaltung





Creating a folder structure

Click "Create new folder", enter a name, and add a description if you wish. The new folder will be added below the selected item in the structure.



icon_ordnerNeu

Create new folder icon



To edit or delete a folder, select the folder and click "Edit cockpit/folder" or "Delete cockpit/folder".



icon_bearbeiten

Edit cockpit/folder icon

icon_loeschen

Delete cockpit/folder icon





Creating a cockpit

To create a new cockpit, click "Create new cockpit", enter a name, and add a description if you wish. The new cockpit will be added below the selected item in the structure.



icon_Cockpit_neu

Create new cockpit icon



You can drag an existing cockpit anywhere in the structure. To edit or delete a cockpit, select the cockpit and click "Edit cockpit/folder" or "Delete cockpit/folder". To open the selected cockpit, click "Open cockpit" or press the Enter key.



icon_cockpitOeffnen

Open cockpit icon





Setting access rights

Please note:

A right which is set will be automatically inherited by all the subsidiary items.

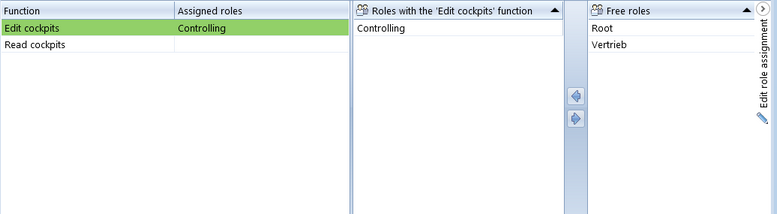

Select an item (a cockpit or a folder). In the role assignment in the lower pane of the Cockpit Management, first select the desired right to be assigned to a role. Here you can choose between the "Edit cockpits" right and the "Read cockpits" right. Then, in the "Free roles" column, select the desired role and assign it using the arrow button. The right that you set will apply for the selected item and all its subsidiary items in the structure.



image_Cockpit_Verwaltung_Rechte
