Column Filter



The context menu of a column contains a filter with which you can narrow down the displayed structure. The column type determines whether a value filter or a text filter is applied. Each filter is applied to all the cells in the column below the start field while retaining the reference to the hierarchical field structure. By selecting "Table view" in the display options, you can switch to the flat list display of the table, in which only the fields of the current filter are displayed, without reference to the parent fields.

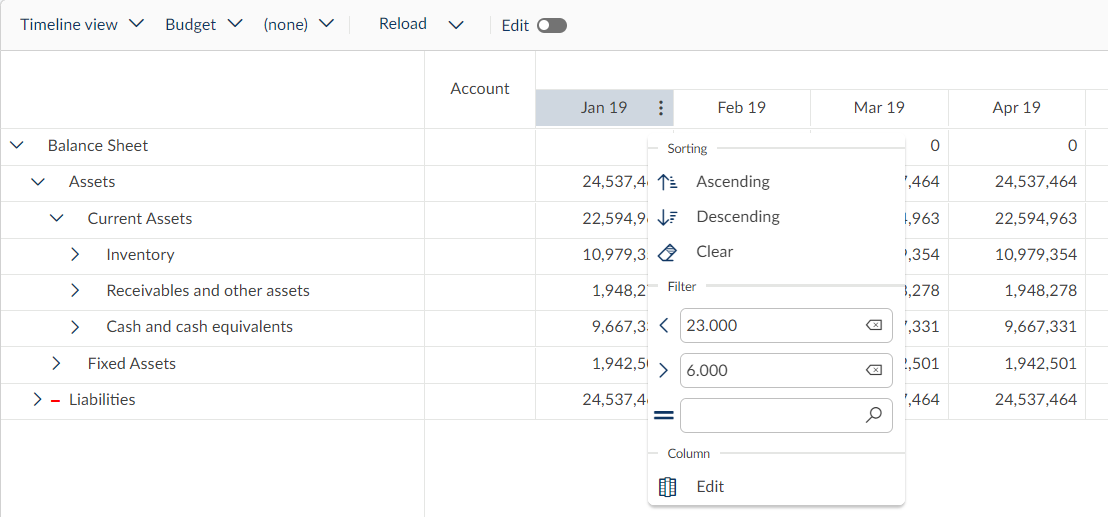

Value filter

image_fin_spaltenfilter





icon_filter_startwert

Maximum value symbol

icon_filter_endwert

Minimum value symbol

icon_filter_exakter_wert

Exact value symbol



When you have defined a maximum and/or a minimum value or specified an exact value, press Enter to confirm. You can see whether a column filter is active by the filter symbol in the column header.



icon_filter_aktiv

Active filter symbol





Text filter

You can filter the content of all text-based columns (Name, Cell Comments, etc.) according to the following options:

•Contains
•Does not contain
•Starts with
•Does not start with
•Ends with
•Does not end with
•Empty
•Not empty



Please note:

A filter is only valid as long as the respective column lies within the time span set in the time slider!
