Pinning Elements



To display specific elements regardless of where you are in the structure, click the "pin" symbol to pin the elements. Those elements will then be displayed in a separate table.



icon_feld_anpinnen

Pin symbol



This second table enables you to compare the upper, dynamic structure with the pinned elements. To unpin an element from the lower table, click the recycle bin of the element. To unpin all pinned elements, click the recycle bin above the lower table.

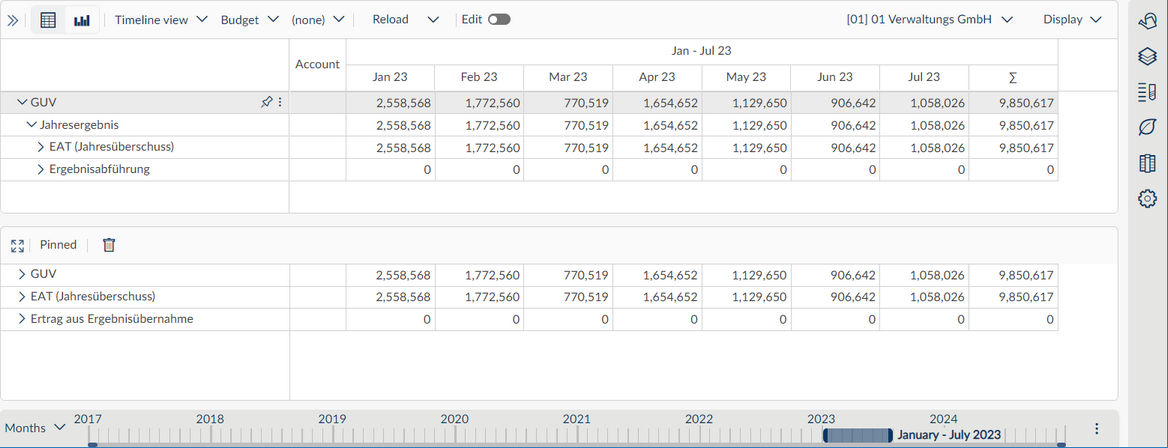

image_cons_anpinnen





Displaying the pinned elements as a separate table

Click the "Maximize" button to display all the pinned elements as a separate table (without the structural navigation). You can now apply all the display options and toolbar functions to the pinned elements. To return to the original table, click "Minimize".



icon_maximieren

"Maximize" symbol

icon_minimieren

"Minimize" symbol
